total mass 5 t

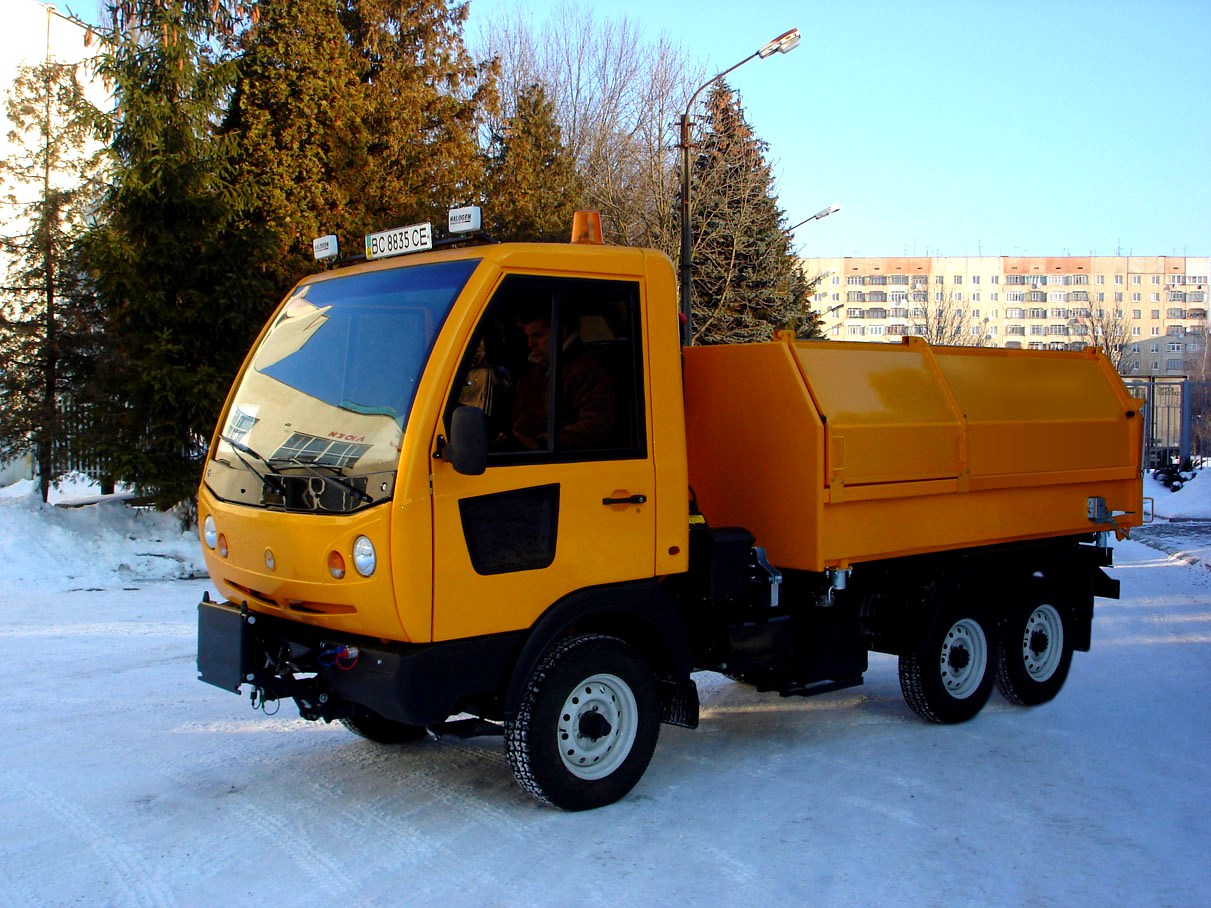

EM-С440 «Electron» municipal vehicles
|
The name of
parameters
|
Characteristics
|
|
THE MAIN
PARAMETERS
|
|
|
Total design mass, kg
|
5000
|
|
Mass of equipped chassis,
kg
|
2590
|
|
Payload capacity, kg
|
2410
|
|
Driver`s cabin roomness, persons
|
1
+ 1
|
|
Wheel formula
|
6 x
4
|
|
Engine
|
ZMZ-514
|
|
- producer
|
|
|
- type
|
Diesel
|
|
- volume, l
|
2,25
|
|
- maximum power, kW (k.s)
|
80,9
(110)
|
|
at revol./min
|
3800
|
|
- maxmum turning moment, Nm
|
270
|
|
at
revol./min
|
1800-2800
|
|
- environmental friendiness
|
Euro-4
|
|
Gear box
|
UAZ-315126
|
|
-
type
|
Mechanical, 4-speed,
synchronized
|
|
Transfer case
|
UAZ-3909
|
|
Axels:
|
|
|
- front guiding and driving
|
UAZ-2206
|
|
- front driving with additional axle
|
UAZ-3741
|
|
- rear supporting
|
ЕМ-H440
|
|
Front /
rear suspension
|
Conventional, spring on two
semielliptical springs, with two-way telescopic shock absorbers and
stabilizer of cross firmness
|
|
Standard size of wheels
|
Radial 225/751*16
|
|
Standard size of tire
|
6.1-16
|
|
Steering control
|
With hydraulic booster
|
|
Braking system
|
Hydraulic, double-circuit,
with vacuum booster
|
|
Capacity of fuel tank, l
|
60
|
|
CRANE-HANDLING INSTALLATION
|
|
|
Type
|
Palfinger
РС1500
(
|
|
Drive
|
Hydraulic
|
|
Loading moment
|
13,7
kН-m (1,4 Т'М)
|
|
Maximum departure of an arrow
|
3,1
m
|
|
Minimum departure of an arrow
|
1,2
m
|
|
Loading at
|
990
kg
|
|
Loading at
|
440
kg
|
|
Pressure in hydrosystem, max
|
20
MPa (200 bar)
|
|
Mass with control desk
|
180
kg
|
